Plate Flanges by Vandan Alloys

Plate Flanges

Name: Plate Flanges
Brand: Vandan Alloys
Price: 500 INR
Availability: InStock

INR 500

In stock

Description

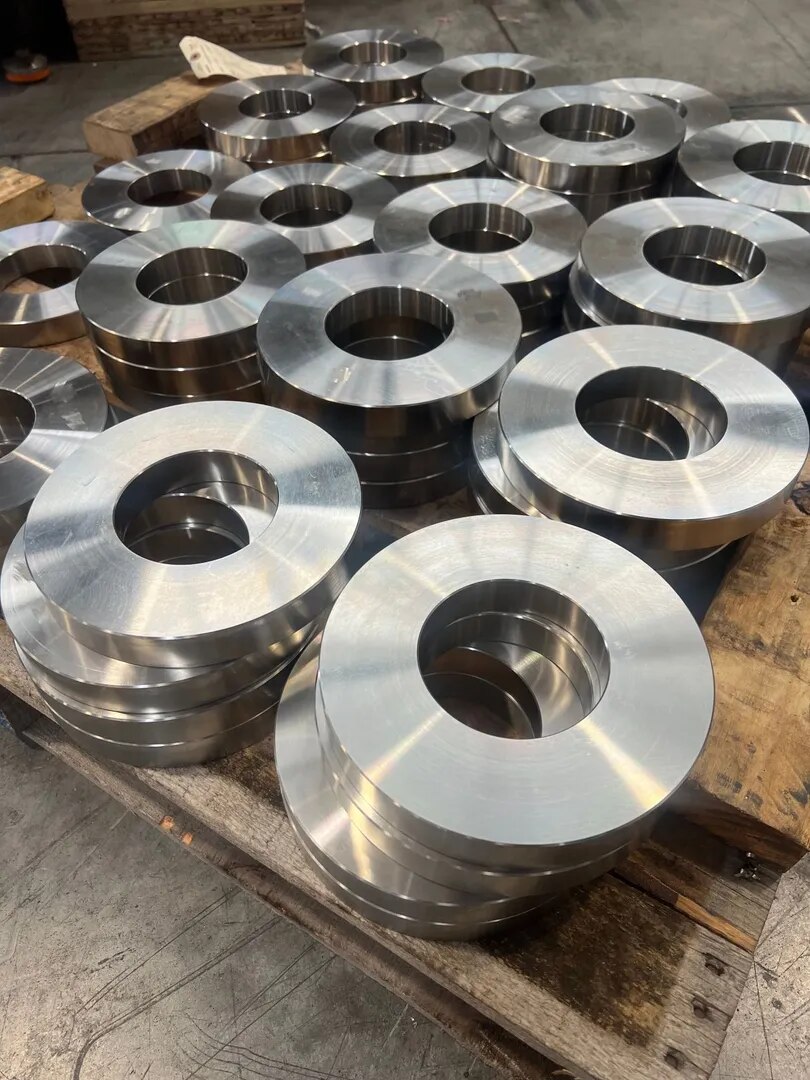

Plate Flanges

Vandan Alloys is a manufacturer, supplier, stockist and exporter of Plate Flanges for industrial piping, fabrication, tank, vessel and equipment connection applications. Plate Flanges are manufactured from suitable plate material and machined or fabricated according to applicable dimensions, customer drawings and project specifications.

They are available in a wide range of materials, sizes, bolt-hole patterns and facing configurations to suit different piping and fabrication requirements.

Plate Flange Specifications

Product: Plate Flanges

Type: Plate Flange / Plate Type Flanges

Manufacturing: Machined or fabricated from suitable plate material as specified

Material: Stainless Steel, Carbon Steel, Alloy Steel, Duplex, Super Duplex, Nickel Alloys and other specified materials

Dimensions: As per customer drawing, project specification or applicable dimensional standard

Pressure Rating: As specified by design or project requirements

Size Range: Custom sizes available according to application and dimensional requirements

Facing: Flat Face (FF), Raised Face (RF) or other specified facing where applicable

Bore: Standard or customized bore

Drilling: Standard or customized bolt-hole drilling

Inspection: Visual and dimensional inspection as required

Certificate: EN 10204 Type 3.1 MTC available

Customization: Special thickness, bore, drilling, OD, facing and dimensions available

Plate Flange Material Grades

Vandan Alloys supplies Plate Flanges in various material grades including:

Stainless Steel: 304, 304L, 316, 316L, 321, 347, 310, 310S and 904L

Carbon Steel: Carbon steel plate grades as specified by customer or project requirements

Alloy Steel: F11, F22 and other specified alloy steel grades

Duplex Stainless Steel: 2205 / UNS S31803 / S32205

Super Duplex Stainless Steel: 2507 / UNS S32750 / S32760

Nickel Alloys: Nickel 200, Nickel 201, Monel 400, Inconel 625, Alloy 20, Hastelloy and other specified grades

Titanium: Grade 2, Grade 5 and other specified grades

Plate Flange Design

Plate Flanges are generally manufactured from plate material and can be produced with the required outside diameter, inside diameter, thickness, bolt-hole arrangement and facing.

Unlike forged flange products manufactured to specific forged-flange standards, plate-type flanges are often produced according to customer drawings, piping specifications or applicable project requirements. The exact dimensions and pressure suitability should therefore be confirmed against the required design standard.

Plate Flange Facing

Depending on the application, Plate Flanges can be supplied with:

Flat Face (FF)

Raised Face (RF), where specified

Other specialized facing arrangements subject to technical requirements

Facing selection depends on the mating component, gasket arrangement and piping specification.

Plate Flange Applications

Plate Flanges are used in a variety of industrial and fabrication applications, including:

Industrial Piping Systems

Water Treatment Plants

Chemical Industries

Petrochemical Applications

Oil & Gas Equipment

Storage Tanks

Pressure Vessel Fabrication

Process Equipment

Structural Piping

Marine Applications

General Engineering

Industrial Fabrication

Customized Plate Flanges

Vandan Alloys can supply Plate Flanges according to customer drawings, dimensions, material specifications and project requirements.

Customization can include:

Special outside diameter

Special inside diameter

Non-standard thickness

Customized bolt-hole drilling

Customized PCD

Special facing

Special material grade

Machining requirements

Customer-specific marking

All customized requirements are reviewed according to technical specifications before production.

Quality & Inspection

Plate Flanges can be inspected for outside diameter, inside diameter, thickness, bore, bolt-hole size, PCD, facing and overall dimensional accuracy.

Material Test Certificates including EN 10204 Type 3.1 MTC can be supplied as required. Third-party inspection can also be arranged according to customer specifications.

Why Choose Vandan Alloys?

Plate Flanges Manufacturer in India

Plate Flanges Exporter in India

Plate Flanges Supplier in India

Plate Flanges Manufacturing Works in India

Wide range of material grades

Customized dimensions available

Special drilling and facing options

Dimensional inspection before dispatch

EN 10204 Type 3.1 MTC available

Export-quality packaging

Worldwide supply from Mumbai, India

Get a Quote

For Plate Flanges, send us your size, material grade, thickness, bore, outside diameter, PCD, bolt-hole details, facing, quantity and applicable drawing or specification.

Vandan Alloys supplies Plate Flanges for industrial piping, fabrication and equipment applications, with focus on dimensional accuracy, material compliance and reliable export supply.
