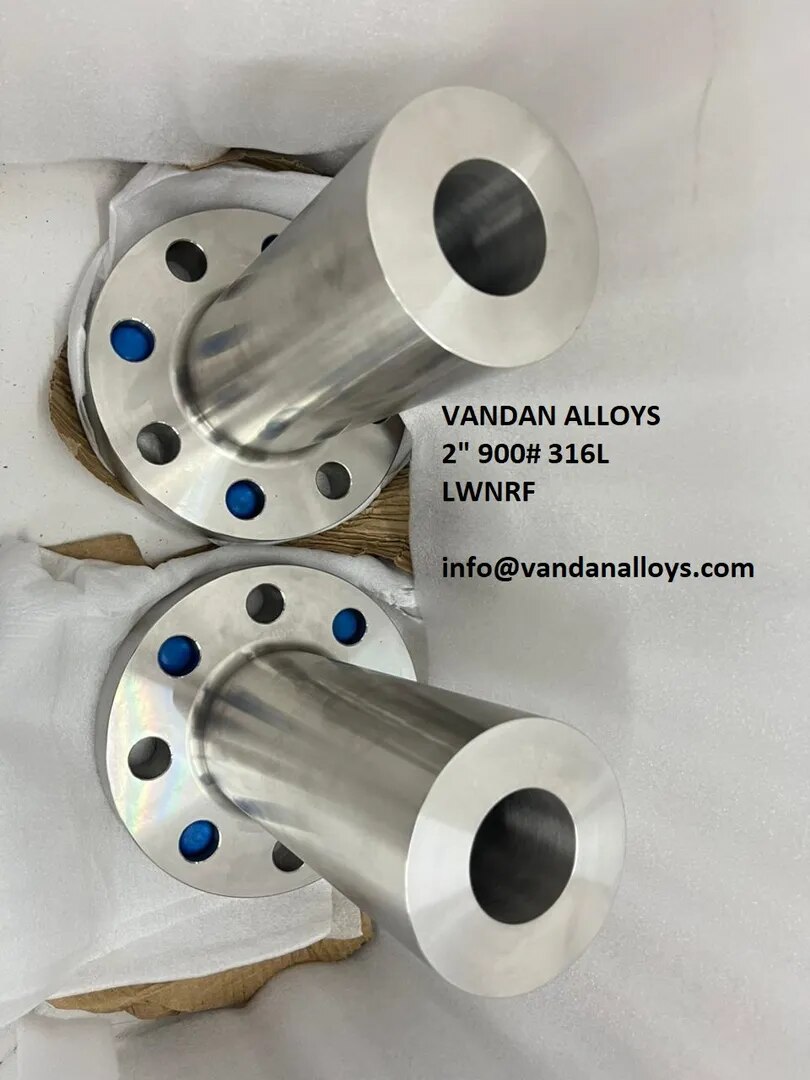

Long Weld Neck Flanges

Long Weld Neck Flanges

Vandan Alloys is a manufacturer, supplier, stockist and exporter of Long Weld Neck Flanges (LWN Flanges) for high-pressure, high-temperature and critical piping applications. Long Weld Neck Flanges are designed with an extended tapered hub that provides a longer transition from the flange body to the pipe, making them suitable for applications requiring increased rigidity and controlled stress distribution.

Long Weld Neck Flange Specifications

Product: Long Weld Neck Flanges

Type: Long Weld Neck / LWN Flanges

Material: Stainless Steel, Carbon Steel, Alloy Steel, Duplex, Super Duplex, Nickel Alloys and other specified materials

Standards: ASME B16.5 and applicable project specifications

Pressure Classes: Class 150, 300, 600, 900, 1500 and 2500

Size Range: 1/2“ to 24” and larger sizes subject to applicable standard or project requirements

Facing: Raised Face (RF), Flat Face (FF) and Ring Type Joint (RTJ) where applicable

Bore: Standard or specified bore to suit pipe dimensions

Drilling: Standard or customized bolt-hole drilling

End Connection: Butt-weld type connection

Inspection: Visual and dimensional inspection as required

Certificate: EN 10204 Type 3.1 MTC available

Customization: Special dimensions, bore, facing, drilling and material grades available

Long Weld Neck Flange Material Grades

Vandan Alloys supplies Long Weld Neck Flanges in a wide range of materials:

Stainless Steel: ASTM/ASME 304, 304L, 316, 316L, 321, 347, 310, 310S and 904L

Carbon Steel: ASTM/ASME A105 and other specified carbon steel forging grades

Alloy Steel: F11, F22 and other applicable alloy steel grades

Duplex Stainless Steel: 2205 / UNS S31803 / S32205

Super Duplex Stainless Steel: 2507 / UNS S32750 / S32760

Nickel Alloys: Nickel 200, Nickel 201, Monel 400, Inconel 625, Alloy 20, Hastelloy and other specified grades

Titanium: Grade 2, Grade 5 and other specified grades

Long Weld Neck Flange Design

A Long Weld Neck Flange incorporates an extended neck and tapered hub compared with a conventional weld neck flange. The extended neck can provide additional structural support and a longer transition area between the flange and pipe.

The flange bore and welding-end dimensions should be selected to match the applicable pipe size, wall thickness and project specification. For critical applications, material, pressure-temperature rating, facing and dimensional requirements should be confirmed before manufacture.

Pressure Classes

Long Weld Neck Flanges are available in Class 150, Class 300, Class 600, Class 900, Class 1500 and Class 2500, subject to size and applicable standard.

Selection of pressure class depends on the piping design conditions, including operating pressure, temperature, material and applicable piping code/specification.

Long Weld Neck Flange Facing

Available facing configurations include:

Raised Face (RF)

Flat Face (FF), where applicable

Ring Type Joint (RTJ), where applicable

RTJ execution is generally selected for higher-pressure and critical sealing applications where the applicable flange standard permits it.

Applications

Long Weld Neck Flanges are used in demanding piping systems such as:

Oil & Gas Industries

Refineries

Petrochemical Plants

Chemical Processing Plants

Power Generation

High-Pressure Piping

High-Temperature Service

Process Industries

Pressure Vessel Connections

Steam and Utility Systems

Industrial Process Piping

Customized Long Weld Neck Flanges

Vandan Alloys can supply Long Weld Neck Flanges according to customer drawings, piping specifications and project requirements.

Special bore dimensions, flange thickness, hub dimensions, bolt-hole drilling, facing, material grade, marking and other engineered requirements can be considered subject to technical review.

Quality & Inspection

Long Weld Neck Flanges can be inspected for outside diameter, thickness, bore, hub dimensions, bolt-hole dimensions, pitch circle diameter, facing and overall dimensional accuracy.

Material Test Certificates including EN 10204 Type 3.1 MTC can be supplied as required. Third-party inspection can also be arranged according to customer requirements.

Why Choose Vandan Alloys?

Long Weld Neck Flanges Manufacturer in India

Manufacturer & Exporter from India

Wide range of material grades

Class 150 to Class 2500

RF, FF and RTJ options where applicable

Customized dimensions and bore

Dimensional inspection before dispatch

EN 10204 Type 3.1 MTC available

Export-quality packaging

Worldwide supply from Mumbai, India

Get a Quote

For Long Weld Neck Flanges, send us your NPS size, material grade, pressure class, facing, bore requirement, quantity and applicable standard.

Vandan Alloys supplies Long Weld Neck Flanges for industrial, high-pressure and critical piping applications, with focus on material compliance, dimensional accuracy and reliable export supply.
