Lap Joint Flanges

Lap Joint Flanges

Vandan Alloys is a manufacturer, supplier, stockist and exporter of Lap Joint Flanges for piping systems requiring easy assembly, alignment and frequent dismantling. Our Lap Joint Flanges are available in different materials, sizes, pressure classes and facing configurations for industrial and process applications.

Lap Joint Flange Specifications

Product: Lap Joint Flanges

Type: Lap Joint / Loose Flanges

Material: Stainless Steel, Carbon Steel, Alloy Steel, Duplex, Super Duplex, Nickel Alloys, Inconel, Monel, Hastelloy, Titanium and other specified grades

Standards: ASME B16.5, ASME B16.47 and applicable international standards

Pressure Classes: Class 150, 300, 600, 900, 1500 and 2500

Size Range: 1/2“ to 24” and larger sizes as required

Facing: RF, FF and other applicable configurations

Bore: Standard or customized

Drilling: Standard or customized bolt-hole drilling

Manufacturing: Forged / machined as per specification

Inspection: Visual and dimensional inspection as required

Certificate: EN 10204 Type 3.1 MTC available

Customization: Special dimensions, drilling, bore and facing available

Lap Joint Flange Material Grades

Vandan Alloys supplies Lap Joint Flanges in various materials and grades.

Stainless Steel: 304, 304L, 316, 316L, 321, 347, 310, 310S, 904L

Carbon Steel: ASTM A105 and other specified grades

Alloy Steel: F11, F22 and other specified grades

Duplex Stainless Steel: 2205 / UNS S31803 / S32205

Super Duplex: 2507 / UNS S32750 / S32760

Nickel Alloys: Nickel 200, Nickel 201, Monel 400, Inconel 625, Alloy 20, Hastelloy and other specified grades

Titanium: Grade 2, Grade 5 and other specified grades

Lap Joint Flange Design

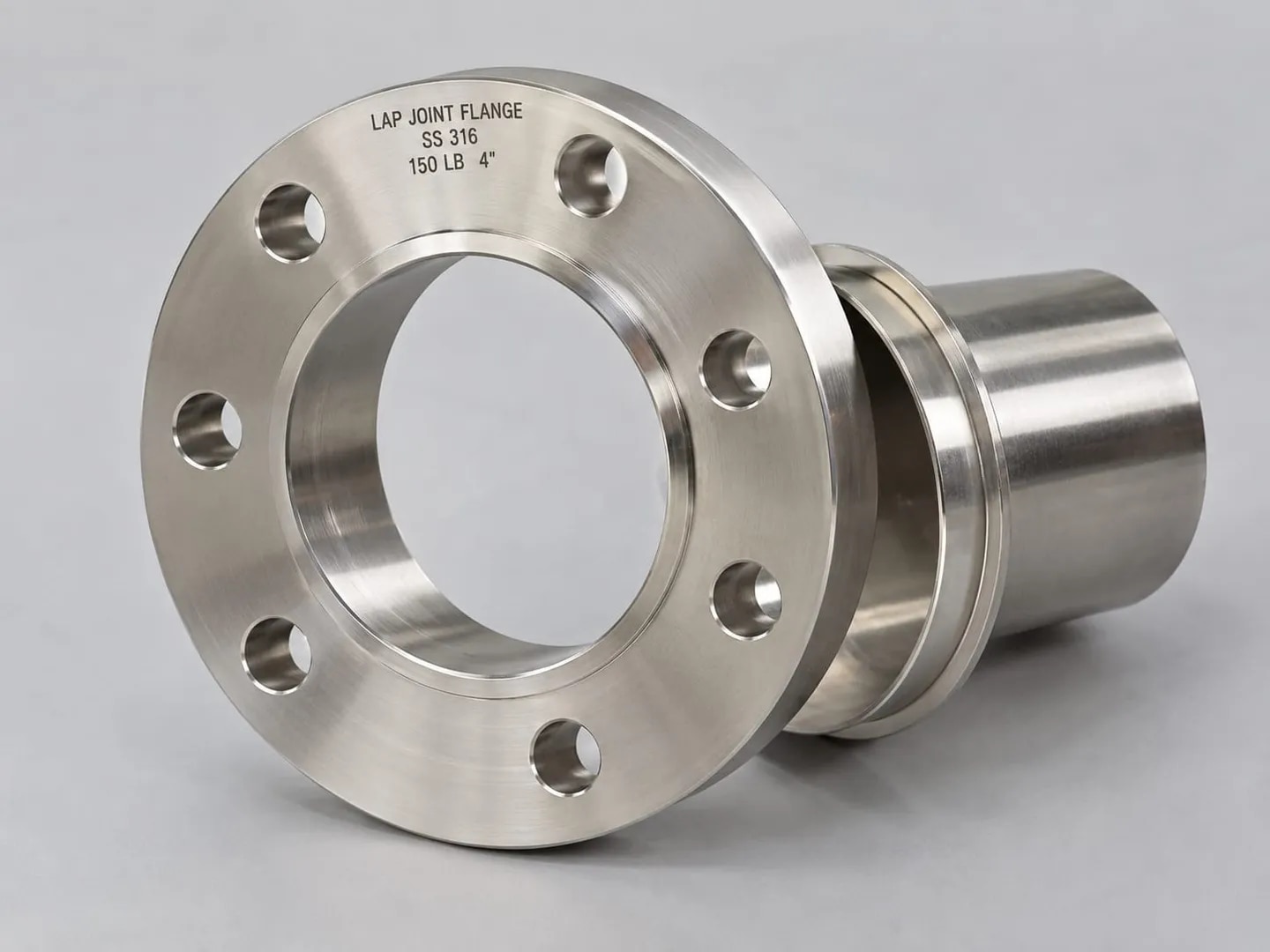

A Lap Joint Flange is used together with a stub end. The flange remains loose around the stub end, allowing the flange to be rotated for easier bolt-hole alignment during installation.

This arrangement can be especially useful in piping systems where regular dismantling, inspection or maintenance is required.

Lap Joint Flange Pressure Classes

We supply Lap Joint Flanges in Class 150, Class 300, Class 600, Class 900, Class 1500 and Class 2500, subject to applicable size, material and standard requirements.

The correct flange class depends on the piping design, operating conditions and applicable specification.

Lap Joint Flange Applications

Lap Joint Flanges are commonly used in:

Oil & Gas Industries

Petrochemical Plants

Chemical Processing

Refineries

Process Piping

Water Treatment

Marine Applications

Offshore Systems

Pharmaceutical Industries

Food Processing

Heat Exchanger Connections

Industrial Equipment

They are particularly useful in applications where flange rotation and repeated pipe disconnection can simplify maintenance and installation.

Customized Lap Joint Flanges

Vandan Alloys can supply Lap Joint Flanges according to customer drawings, project specifications and special dimensional requirements.

Customized bore, outside diameter, thickness, bolt-hole drilling, facing, dimensions and material grades can be supplied subject to technical requirements.

Quality & Inspection

Lap Joint Flanges can be checked for outside diameter, thickness, bore, bolt-hole dimensions, pitch circle diameter, facing, flange rotation and overall dimensional accuracy.

Material Test Certificates including EN 10204 Type 3.1 MTC can be supplied as required. Third-party inspection can also be arranged according to customer specifications.

Why Choose Vandan Alloys?

Lap Joint Flange Manufacturer & Exporter

Manufacturer in India

Wide range of material grades

Class 150 to Class 2500

Standard and customized sizes

RF and FF options

EN 10204 Type 3.1 MTC available

Inspection before dispatch

Export-quality packaging

Worldwide supply from Mumbai, India

Get a Quote

For Lap Joint Flanges, send us your size, material grade, pressure class, facing, quantity, stub-end requirement and applicable standard.

Vandan Alloys supplies Lap Joint Flanges for industrial piping, maintenance projects and international export requirements with focus on material compliance and dimensional accuracy.
