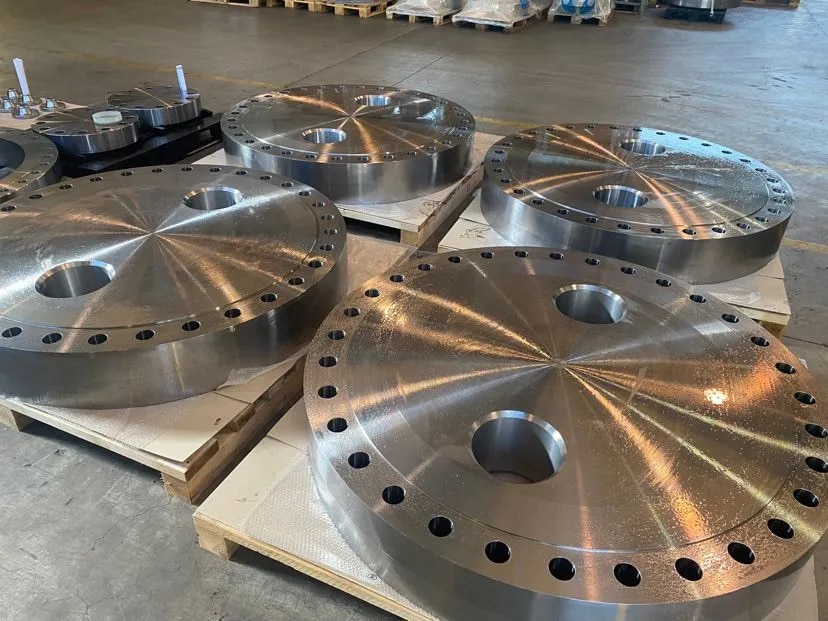

Custom Flanges as per drawing by Vandan Alloys

Custom Flanges

Name: Custom Flanges
Brand: Vandan Alloys
Price: 25000 INR
Availability: InStock

INR 25000

In stock

Description

Custom Flanges

Vandan Alloys is a manufacturer, supplier, stockist and exporter of Custom Flanges manufactured according to customer drawings, engineering specifications and application requirements. Custom Flanges are suitable where standard flange dimensions, bore configurations, materials or drilling arrangements do not meet a particular piping or equipment requirement.

We supply customized flange solutions in stainless steel, carbon steel, alloy steel, duplex, super duplex, nickel alloys, titanium and other specified materials.

Custom Flange Specifications

Product: Custom Flanges

Type: Special Flanges / Non-Standard Flanges / Engineered Flanges

Material: Stainless Steel, Carbon Steel, Alloy Steel, Duplex, Super Duplex, Nickel Alloys, Titanium and other specified materials

Design: As per customer drawing or approved technical specification

Dimensions: Customized OD, ID, thickness, hub, bore and PCD

Pressure Class: As specified by customer or applicable design standard

Size Range: Standard and large/custom sizes as required

Facing: RF, FF, RTJ and other specified configurations where applicable

Drilling: Standard, non-standard or customized bolt-hole drilling

Bore: Standard, oversized, reduced or specially machined bore as specified

Inspection: Visual and dimensional inspection as required

Certificate: EN 10204 Type 3.1 MTC available

Customization: Material, dimensions, drilling, facing, bore, thickness and marking

Custom Flange Material Grades

Vandan Alloys manufactures Custom Flanges in a wide range of grades including:

Stainless Steel: 304, 304L, 316, 316L, 321, 347, 310, 310S and 904L

Carbon Steel: ASTM/ASME A105 and other specified carbon steel grades

Alloy Steel: F11, F22 and other specified alloy steel grades

Duplex Stainless Steel: 2205 / UNS S31803 / S32205

Super Duplex Stainless Steel: 2507 / UNS S32750 / S32760

Nickel Alloys: Nickel 200, Nickel 201, Monel 400, Inconel 625, Alloy 20, Hastelloy and other specified grades

Titanium: Grade 2, Grade 5 and other specified grades

Custom Flange Manufacturing

Custom Flanges can be manufactured according to a customer-supplied drawing, sample, dimensional specification or approved engineering requirement.

Depending on the design, customization may include:

Special outside diameter

Special inside diameter

Custom flange thickness

Reduced or special bore

Special hub dimensions

Customized PCD

Non-standard bolt-hole drilling

Special facing

RTJ groove where applicable

Special marking and identification

Technical requirements are reviewed before production to ensure that the proposed flange configuration is suitable for the intended application.

Custom Flange Standards

Where applicable, dimensions can be based on recognized standards such as ASME B16.5, ASME B16.47 and other relevant standards or project specifications.

For non-standard designs, the customer drawing and approved engineering specification govern the final dimensions and configuration.

Pressure-temperature suitability and material compatibility should be established according to the applicable piping or equipment design requirements.

Custom Flange Applications

Custom Flanges are supplied for:

Oil & Gas Industries

Refineries

Petrochemical Plants

Chemical Processing

Power Generation

Process Piping

Pressure Vessels

Heat Exchangers

Industrial Equipment

Water Treatment

Marine Applications

General Engineering

Special Fabrication Projects

Drawing-Based Flange Manufacturing

Customers can provide a PDF, CAD drawing, dimensional sketch or detailed flange specification for review.

Our manufacturing process can be planned according to the required material, dimensions, machining requirements, facing, drilling and inspection criteria.

For critical applications, all important dimensional and material requirements should be clearly defined on the approved drawing or purchase specification.

Quality & Inspection

Custom Flanges can be inspected for outside diameter, inside diameter, thickness, bore, hub dimensions, PCD, bolt-hole diameter, facing, groove details and overall dimensional accuracy.

Material Test Certificates including EN 10204 Type 3.1 MTC can be supplied as required. Third-party inspection can also be arranged according to customer requirements.

Why Choose Vandan Alloys?

Custom Flanges Manufacturer in India

Custom Flanges Exporter in India

Custom Flanges Supplier in India

Custom Flanges Manufacturing Works in India

Drawing-based manufacturing

Wide range of material grades

Special dimensions and drilling

Customized bore and facing

Dimensional inspection before dispatch

EN 10204 Type 3.1 MTC available

Export-quality packaging

Worldwide supply from Mumbai, India

Get a Quote

For Custom Flanges, send us your drawing, flange dimensions, material grade, pressure requirement, facing, bore, bolt-hole details, quantity and applicable standard.

Vandan Alloys provides customized flange solutions for industrial piping, equipment and engineering applications, with focus on dimensional accuracy, material compliance and dependable export supply.
