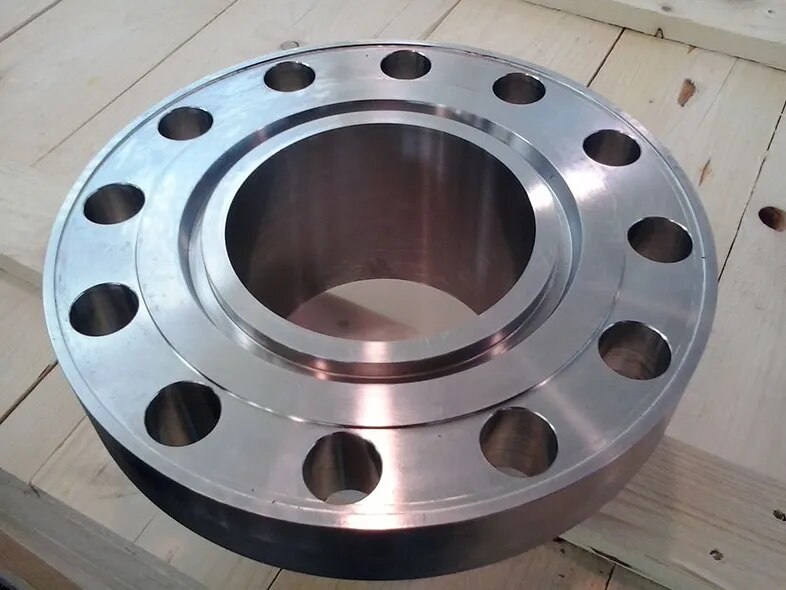

Alloy Steel F11 / F22 Flanges by Vandan Alloys

Alloy Steel F11 / F22 Flanges

Name: Alloy Steel F11 / F22 Flanges
Brand: Vandan Alloys
Availability: InStock

In stock

Description

Vandan Alloys manufactures, supplies, stocks and exports Alloy Steel F11 and F22 Flanges for high-temperature piping, pressure systems, power plants, petrochemical facilities and demanding industrial applications.

F11 and F22 alloy steel flanges are selected for applications where elevated-temperature service, pressure resistance and dependable mechanical properties are important. Vandan Alloys supplies these flanges in various configurations, sizes, pressure classes and facing options according to applicable standards and customer specifications.

Alloy Steel F11 / F22 Flange Types

Our product range includes:

F11 Weld Neck Flanges

F11 WNRF Flanges

F11 Blind Flanges

F11 Slip-On Flanges

F11 Socket Weld Flanges

F11 Threaded Flanges

F11 Lap Joint Flanges

F11 Orifice Flanges

F11 Long Weld Neck Flanges

F11 RTJ Flanges

F22 Weld Neck Flanges

F22 WNRF Flanges

F22 Blind Flanges

F22 Slip-On Flanges

F22 Socket Weld Flanges

F22 Orifice Flanges

Custom Alloy Steel Flanges as per Drawing

Product Specifications

Material: Alloy Steel

Material Grades: ASTM A182 F11 / F22

Forging Specification: ASTM A182

Applicable Standards: ASME B16.5, ASME B16.47 and other applicable standards

Pressure Classes: Class 150, 300, 600, 900, 1500 and 2500

Size Range: 1/2“ to 24” and larger sizes where applicable

Facing: Raised Face (RF), Flat Face (FF) and Ring Type Joint (RTJ)

Flange Designs: Weld Neck, WNRF, Blind, Slip-On, Socket Weld, Threaded, Lap Joint, Orifice, Long Weld Neck and RTJ

Inspection: Visual, dimensional and additional inspection as specified by the customer

Documentation: EN 10204 Type 3.1 Material Test Certificate available

Special Requirements: Custom bore, drilling, dimensions, facing and special flange configurations can be supplied according to approved drawings and technical specifications.

F11 Alloy Steel WNRF Flanges

F11 WNRF Flanges are used in piping systems where alloy steel material is required for elevated-temperature and pressure service.

The weld neck configuration provides a welded connection suitable for many high-temperature process and power-industry piping applications. Vandan Alloys can supply F11 WNRF flanges with different pressure ratings, bore configurations and facing requirements.

F22 Alloy Steel WNRF Flanges

F22 WNRF Flanges are used in demanding piping applications where the specified F22 alloy steel grade is required.

These flanges can be supplied in different sizes, pressure classes, drilling patterns and face configurations according to the applicable standard and customer specification.

F11 / F22 Blind Flanges

Alloy Steel F11 and F22 Blind Flanges are used for closing pipe ends, isolating piping sections and blanking equipment connections.

RF, FF and RTJ configurations can be supplied according to the required application, pressure class and dimensional standard.

F11 / F22 Slip-On Flanges

F11 / F22 Slip-On Flanges are suitable for piping applications where the flange is fitted over the pipe and welded into position.

They can be supplied in different sizes and pressure classes with drilling and dimensions according to the specified standard.

F11 / F22 Socket Weld Flanges

Alloy Steel Socket Weld Flanges are generally used for suitable smaller-diameter piping connections. The pipe is inserted into the flange socket and welded as required by the applicable joining procedure.

F11 and F22 socket weld flanges can be supplied according to size, pressure rating and project requirements.

Sizes and Pressure Classes

Vandan Alloys can supply F11 and F22 alloy steel flanges in commonly required NPS sizes:

NPS: 1/2“, 3/4”, 1“, 1-1/2”, 2“, 3”, 4“, 6”, 8“, 10”, 12“, 14”, 16“, 18”, 20“, 24” and larger sizes where applicable.

Pressure Classes: 150, 300, 600, 900, 1500 and 2500.

Large-diameter flanges, special bore requirements, customized drilling and non-standard flange designs can be reviewed against customer drawings.

Applications of F11 / F22 Flanges

Alloy Steel F11 and F22 flanges are used in applications such as:

Thermal Power Plants

Steam Piping Systems

Petrochemical Plants

Refineries

Oil & Gas Processing

High-Temperature Piping

Pressure Equipment

Boiler Systems

Heat Exchanger Connections

Process Plants

Industrial Engineering

Power Generation Projects

ASTM A182 F11 / F22 Flanges

ASTM A182 F11 and F22 are alloy steel forging grades used for components intended for pressure and elevated-temperature service.

The appropriate grade should be selected according to the design conditions, applicable material specification and project requirements.

Vandan Alloys can supply F11/F22 flanges with the required material certification and inspection documentation as specified by the customer.

Quality & Inspection

Inspection and documentation can be arranged according to the purchase order and technical requirements.

Available documentation may include:

Material Test Certificate

EN 10204 Type 3.1 Certificate

Chemical Composition

Mechanical Test Results

Dimensional Inspection

Visual Inspection

Additional Testing as Required

Third-Party Inspection where specified

Export Packing Documentation

Why Choose Vandan Alloys?

Vandan Alloys supplies Alloy Steel F11 and F22 flanges for industrial, engineering and international project requirements.

Our capabilities include:

ASTM A182 F11 / F22 Flanges

Multiple flange configurations

Various pressure classes

Standard and custom dimensions

Inspection and certification support

Export-quality packing

International supply

Manufacturer, Supplier, Stockist & Exporter

Request a Quote

For a quotation, provide the flange type, size, pressure class, material grade, facing, bore, quantity and applicable standard.

Our team can review the technical requirement and offer a suitable F11 or F22 alloy steel flange solution.
